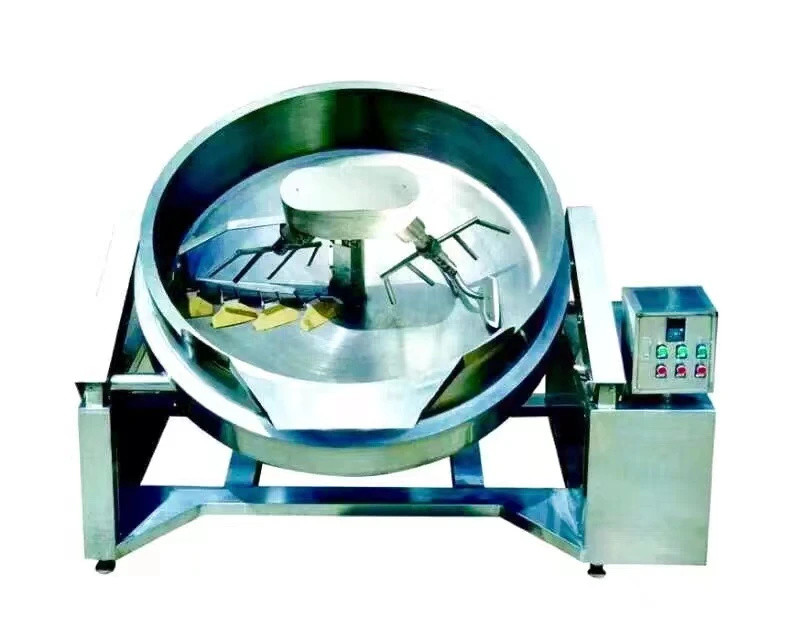

Tited Type Electric heating Jacketed Kettle Industry Cooking Pot(Option: steam heating)

Tilting jacketed kettle is composed of kettle, bracket, worm wheel and worm etc. The kettle can revolve within 180C. The equipment is used for open concentration, mainly for decocting and concentration of liquids in industries of pharmaceutical industry, food industry, chemical industry and light industry etc. Contact area of the equipment with materials is made of stainless steel SUS 304, which has perfect corrosion-proof performance, and is highly endurable according to GMP requirements. Blender also can be added according customer requirements.

Character:

1.Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

2. Pure copper  wire motor: low noise, stable dynamic

3.Open lid with handle:quick to open ,convenient to put the raw material into the kettle

4 scraper blade adopt the import material scraper ,durable  and easy to clean .

5. heating source can be choosed: electric heating or steam heating.it can tackle any circumstance

Configuration Option:

Material: Stainless steel SUS 304 or SUS316L

Volume: 50-20000L (can be fabricated according to the client requirement)

Mixer: Normal agitator  or high shear homogenizer you can choose

Agitator RPM: 0-200 or fixed speed

Homogenizer RPM: 0-2900 or fixed speed(option item)

Heating type: Steam heating ,Gas or  electric heating
